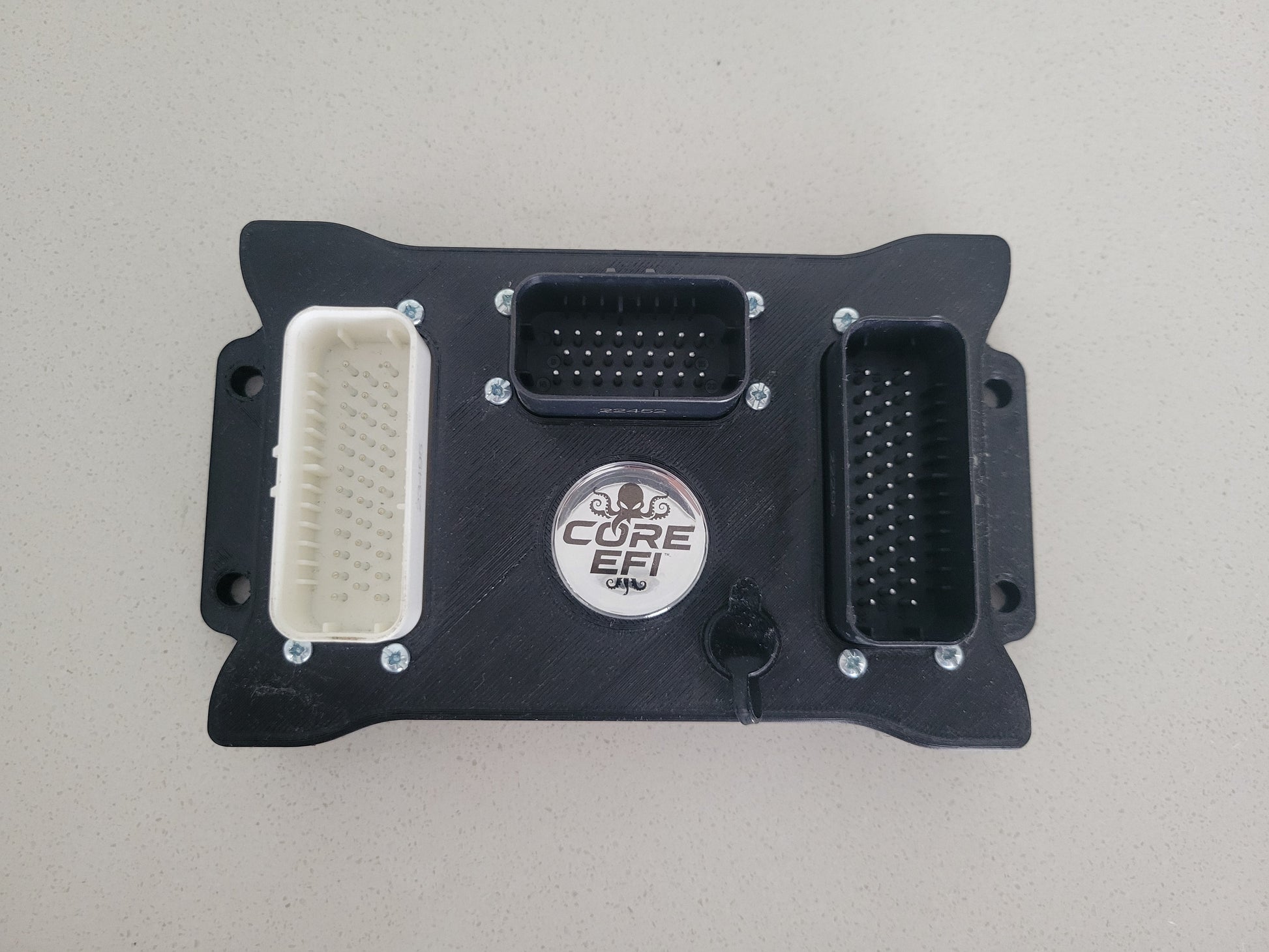

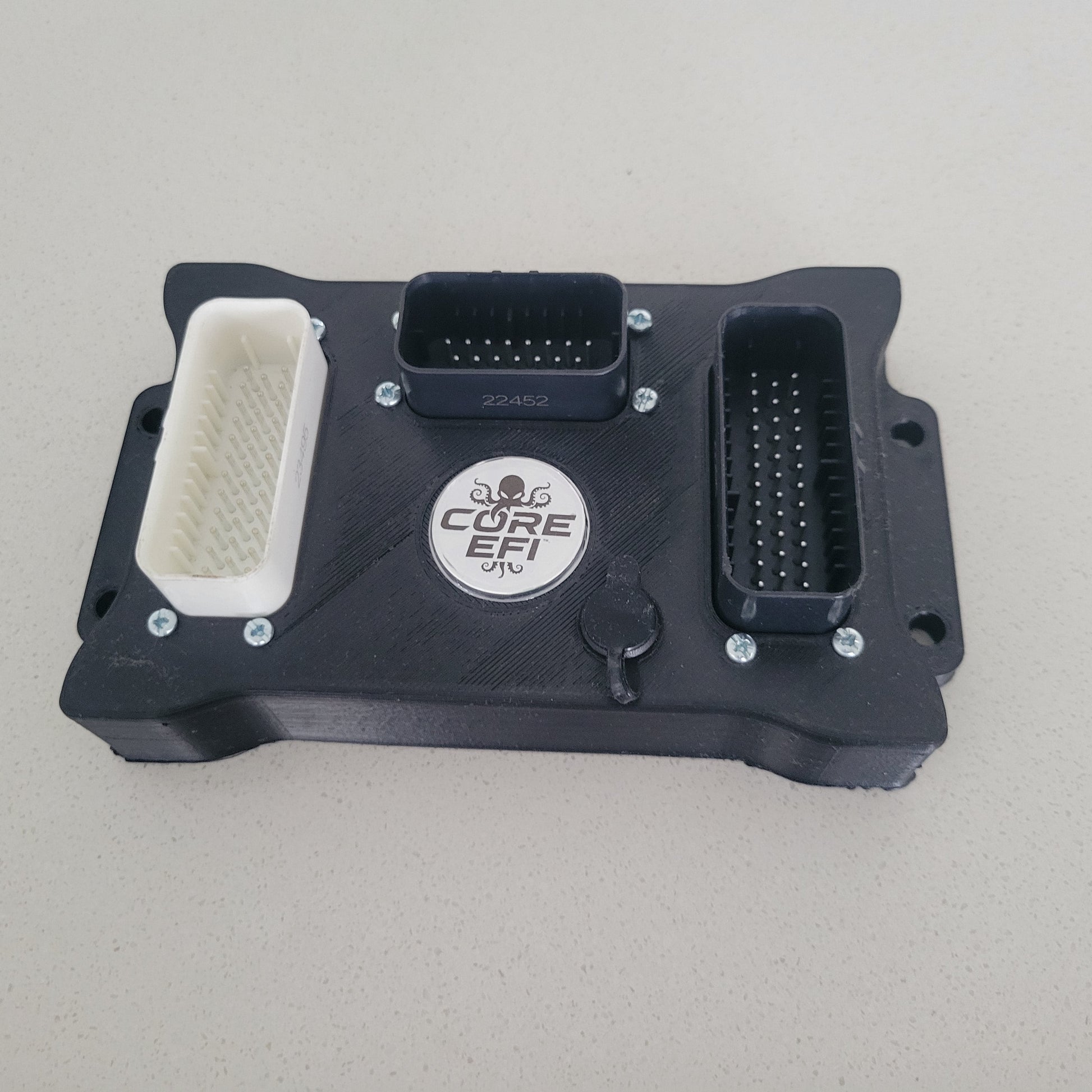

Race Core ECU

Race Core is the top of the range Core EFI ECU and will work on any application.

• ARM Cortex-M7 core 216 MHz
• 64GB Internal datalogging up to 50Hz
• Water Resistant ABS Case (Waterproof option on request)
• 12 Cylinder Full Sequential
• 16x 4A low-side drivers (Injectors/vvt/boost control/etc.)
• 12x 5v ignition (or general purpose) outputs
• Dual H-bridges for 2x electronic throttle (also supports stepper idle valve!)
• 4x 12v 3A high-side outputs (V-tech/alternator/power steering/etc.)
• 11x Analog voltage inputs 0v-5v
• 4x Analog temperature (5v pullup) inputs
• 2x VR crank/cam/vehicle speed inputs
• 6x hall cam/crank/vss/flex or digital input
• dual 1 mbit/s CAN bus
• Full operation from 6-24v supply
• Dual 5v sensor supplies, 150mA each, fully protected
• Dual protected 12v external sensor supply

Features:

• Lua Scripting
• Closed Loop Fueling/AFR Control
• Long term learning
• Individual Cylinder Trim
• Dual Knock Control with spectrograph & Per cylinder knock detection

• Multispark
• CAN Digital dash Compatibility (Haltech/Aim/Powertune/TSDash)
• OEM CAN support BMW e46, E90, VAG, Fiat, RX8, Honda K, 350Z, Mercedes
• Flex Fuel
• Wheel speed based gear detection
• launch control
• Nitrous Control
• 4x Custom PWM maps 8x8
• PWM Alternator control
• Aircon Control
• Compatible with Core EFI/Fome/rusefi Firmware
